Open Attention Residuals: Replacing Additive Residuals with Learned Cross-Layer Attention

Cheng Luo, Zefan Cai — March 2025

TL;DR

We provide an open-source implementation of Attention Residuals (Kimi Team, 2025) and systematically evaluate them on Qwen3-architecture models. Standard transformers use simple additive residual connections; Attention Residuals replace these with a learned softmax attention over previous layer representations, allowing each layer to selectively retrieve information from any earlier layer.

What Are Attention Residuals?

In a standard transformer, the residual connection at each layer is a simple addition:

h = h + Attention(Norm(h))
h = h + MLP(Norm(h))

Every layer can only see the cumulative sum of all previous layers' outputs. A deep layer cannot selectively access the representation from, say, layer 3 without also including the modifications from layers 4 through N-1.

Attention Residuals replace this additive shortcut with a learned depth-wise attention mechanism. Layers are grouped into blocks, and before each sublayer, the model attends over all previous block representations to decide what information to retrieve:

def block_attn_res(blocks, partial_block, proj, norm):
    V = torch.stack(blocks + [partial_block])     # (N+1, B, T, D)
    K = norm(V)                                    # RMSNorm keys
    query = proj.weight.view(-1)                   # learned query (D,)
    logits = einsum("d, n b t d -> n b t", query, K)
    weights = softmax(logits, dim=0)               # (N+1, B, T)
    return einsum("n b t, n b t d -> b t d", weights, V)

This allows each layer to selectively attend to specific earlier blocks — similar to how standard attention operates over token positions, but applied across the network's depth.

Two Modes: Block vs Full

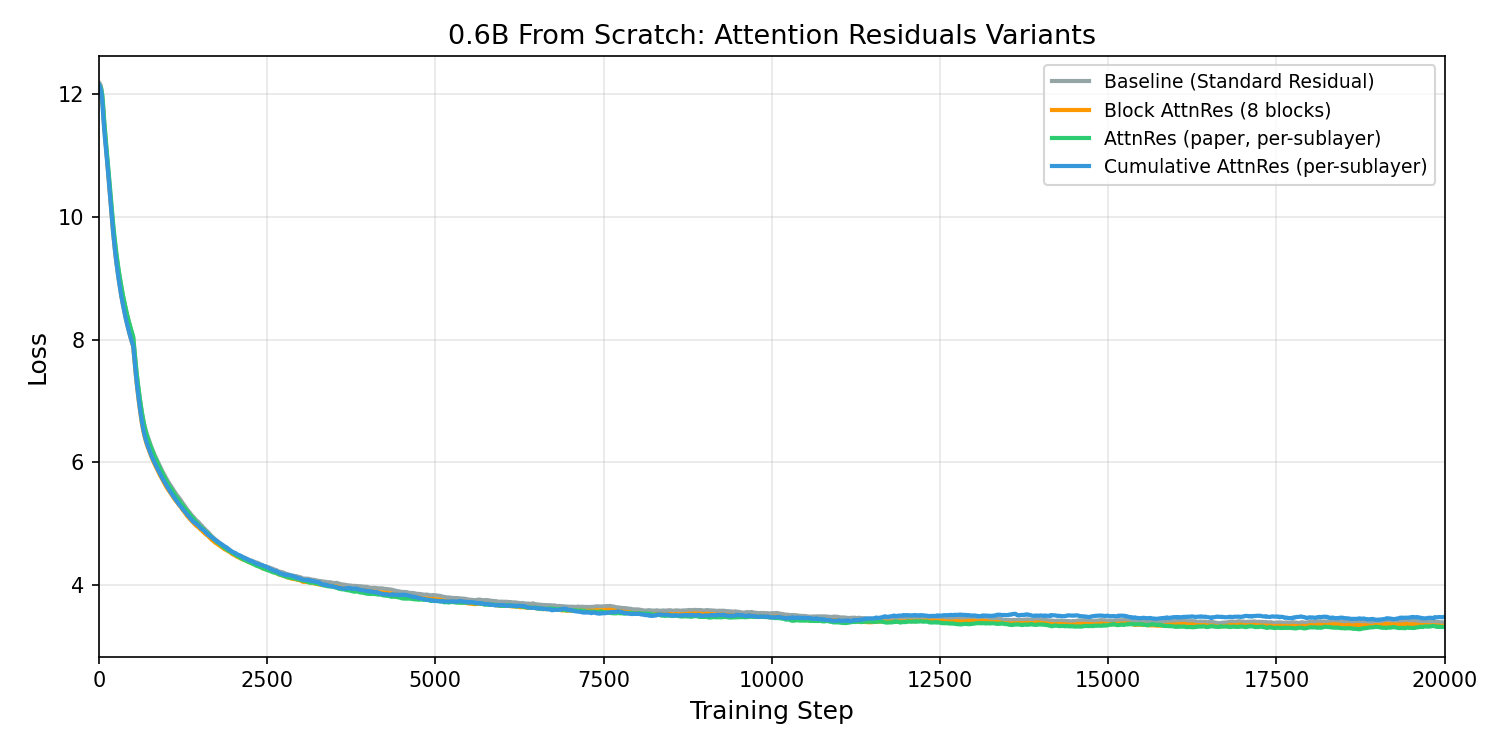

Experiment 1: Training from Scratch

We train a ~100M model (d=512, L=12) from scratch on FineWeb-Edu for 20k steps with identical hyperparameters across three variants: standard residual baseline, Block AttnRes (4 blocks), and Full AttnRes (per-sublayer).

We also ran this experiment at 0.6B scale (d=1024, L=28, same architecture as Qwen3-0.6B):

Why Block Beats Full

Block AttnRes consistently outperforms Full AttnRes. The reason: with 4 blocks of 3 layers each, each block accumulates multiple layers of computation, creating meaningfully distinctive representations to attend over. Full AttnRes has many individual sublayer outputs that differ by only one small residual update — the signal-to-noise ratio for the softmax routing is worse.

Visualizing Layer Dependencies

We visualize the learned softmax weights to see how layers route information across depth. Each row is a sublayer (Attn/MLP alternating), each column is a source (earlier block or sublayer output). Brighter = higher attention weight.

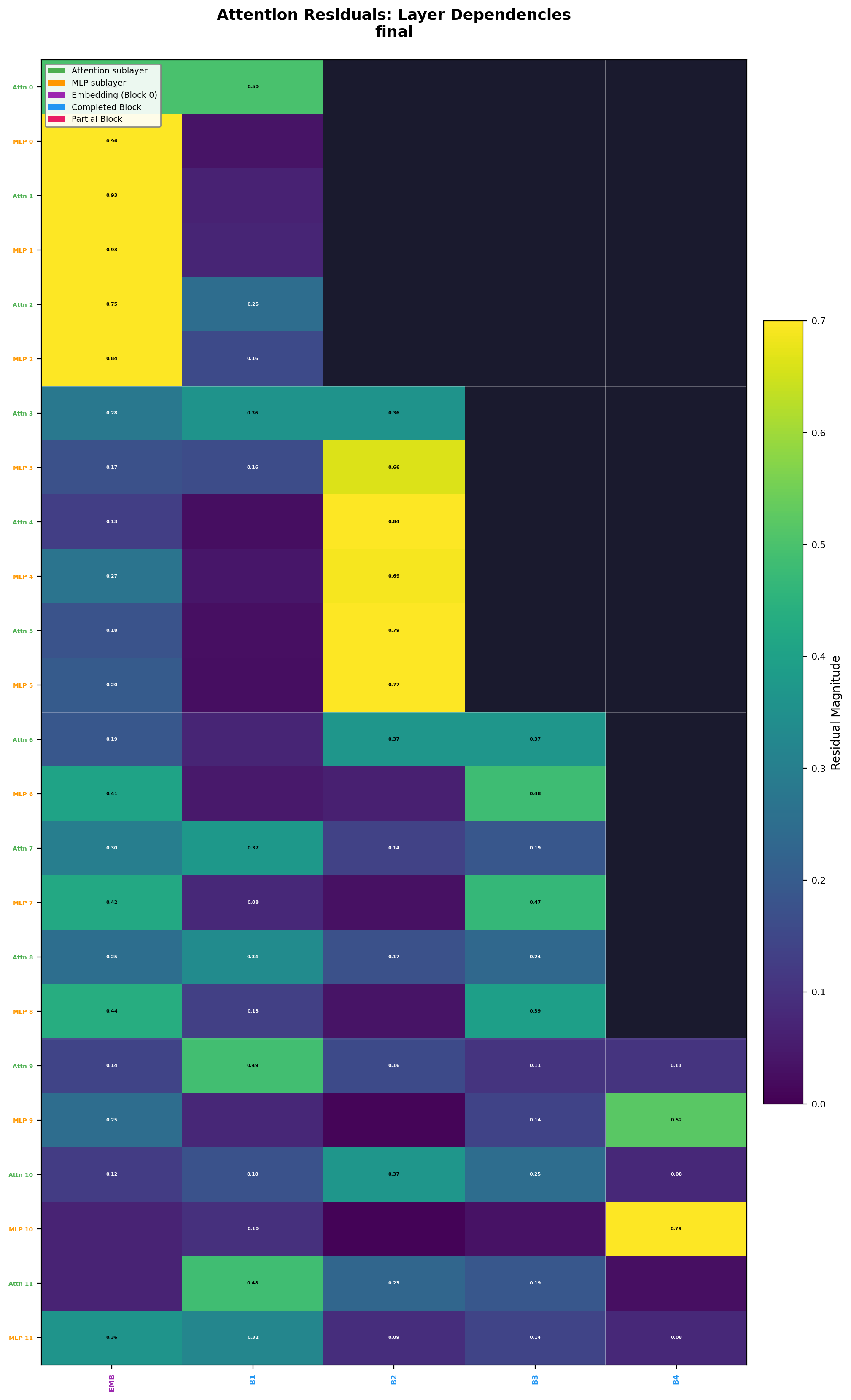

Block AttnRes (4 blocks, trained from scratch)

Rich cross-block attention patterns: layers selectively attend to specific earlier blocks, not just the most recent one. The embedding (Block 0) receives significant attention from many layers.

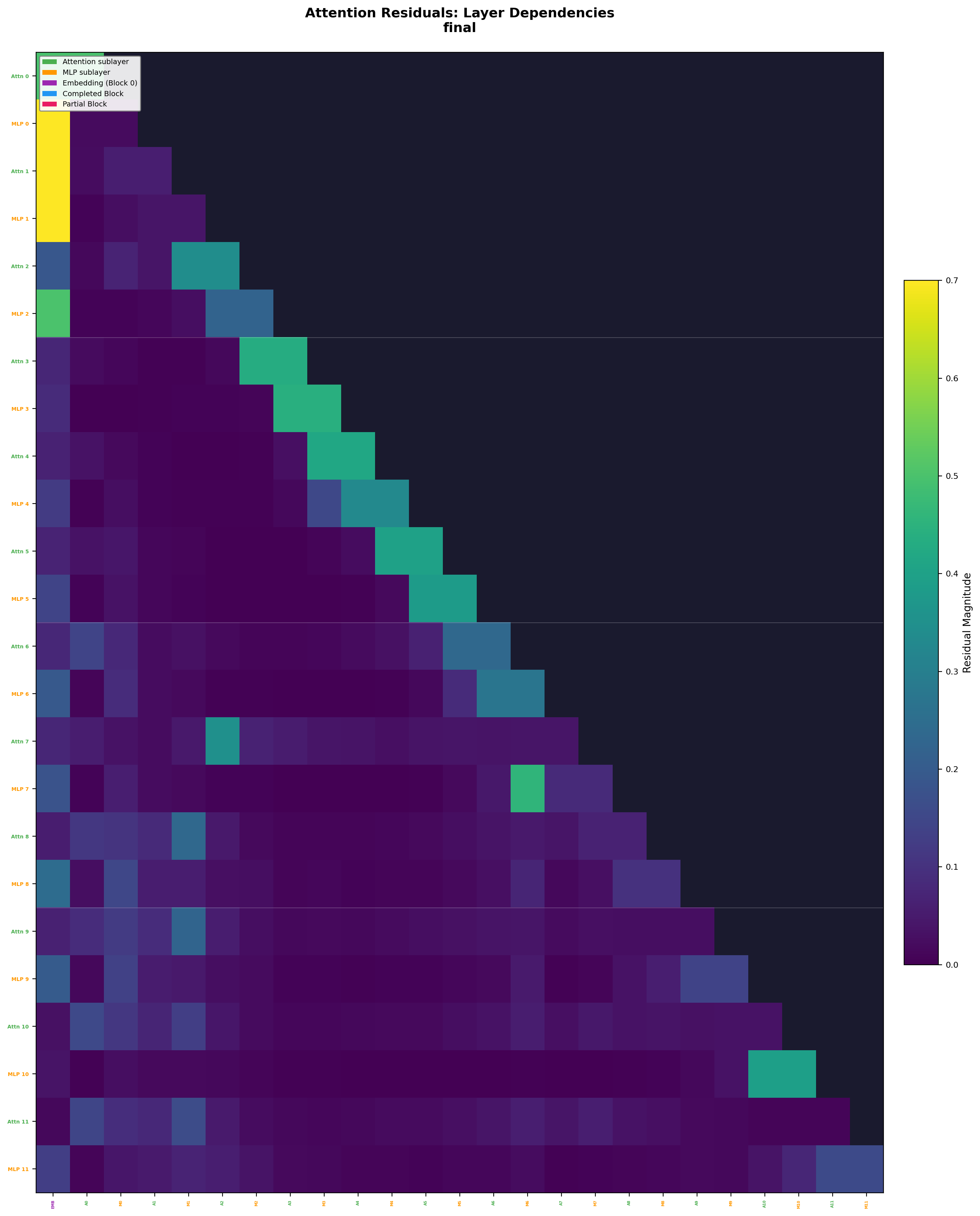

Full AttnRes (per-sublayer, trained from scratch)

Smooth triangular growth (1 source per sublayer). The model learns genuine cross-layer connections but the attention is more diffuse across the many similar sources.

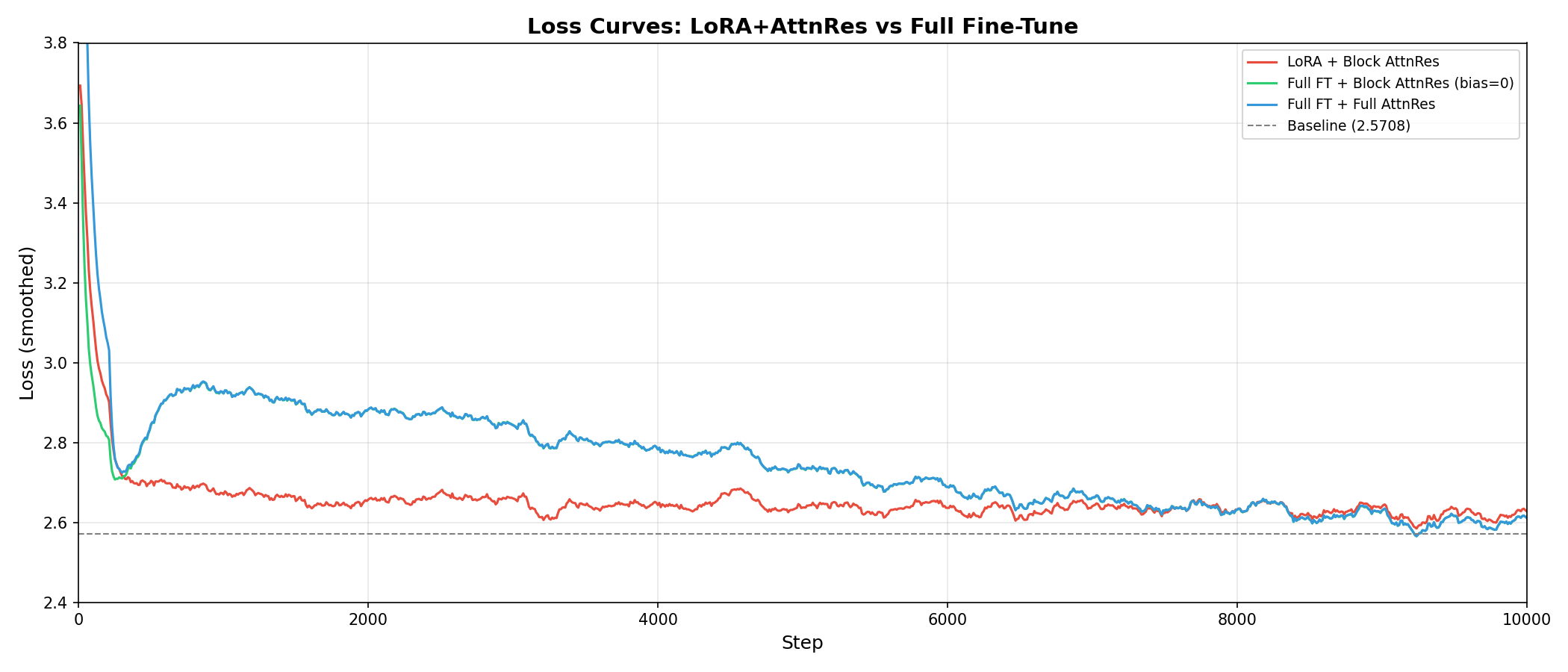

Experiment 2: Fine-tuning Pretrained Models

We also applied AttnRes to pretrained Qwen3 models (0.6B and 1.7B) via continued pretraining on FineWeb-Edu for 10k steps. This is a harder setting because the pretrained weights are already optimized for standard residual connections.

What We Tried to Improve Fine-tuning

The conclusion: for fine-tuning, just use the paper's zero-init. For the best results, train from scratch.

Lessons Learned

1. Train from scratch for maximum benefit. AttnRes shows 3x larger improvements when the model co-evolves with cross-layer routing from step 0.
2. Block mode > Full mode at small-to-medium scale. Fewer, more distinctive block representations are easier to route than many nearly-identical sublayer outputs.
3. Zero-init queries work best. The paper's default initialization (all projection weights = 0 → uniform softmax) outperforms all our alternatives: recency bias, sigmoid gates, LoRA co-adaptation, and knowledge distillation.
4. Don't give the model an escape hatch. When a learnable parameter allows recovering standard residual behavior, the model will use it. Freeze the bias at zero to force cross-layer learning.
5. AttnRes adds negligible overhead. 0.03% parameters, <2% latency. The cost is almost free.

Quick Start

# Install
pip install -r requirements.txt

# Train from scratch (Block AttnRes, recommended)
torchrun --nproc_per_node=8 train.py --mode block --num_blocks 4

# Evaluate
python eval.py --model_path output/scratch-block-d512-L12-20k/final --mode block

# Interactive visualization
python app.py --model_path output/scratch-block-d512-L12-20k/final --mode block

Pretrained Weights

Citation

@software{luo2025openattnres,
  title={Open Attention Residuals},
  author={Cheng Luo and Zefan Cai},
  url={https://github.com/wdlctc/open-attention-residuals},
  year={2025}
}

@article{kimi2025attention,
  title={Attention Residuals},
  author={Kimi Team},
  journal={arXiv preprint arXiv:2603.15031},
  year={2025}
}
